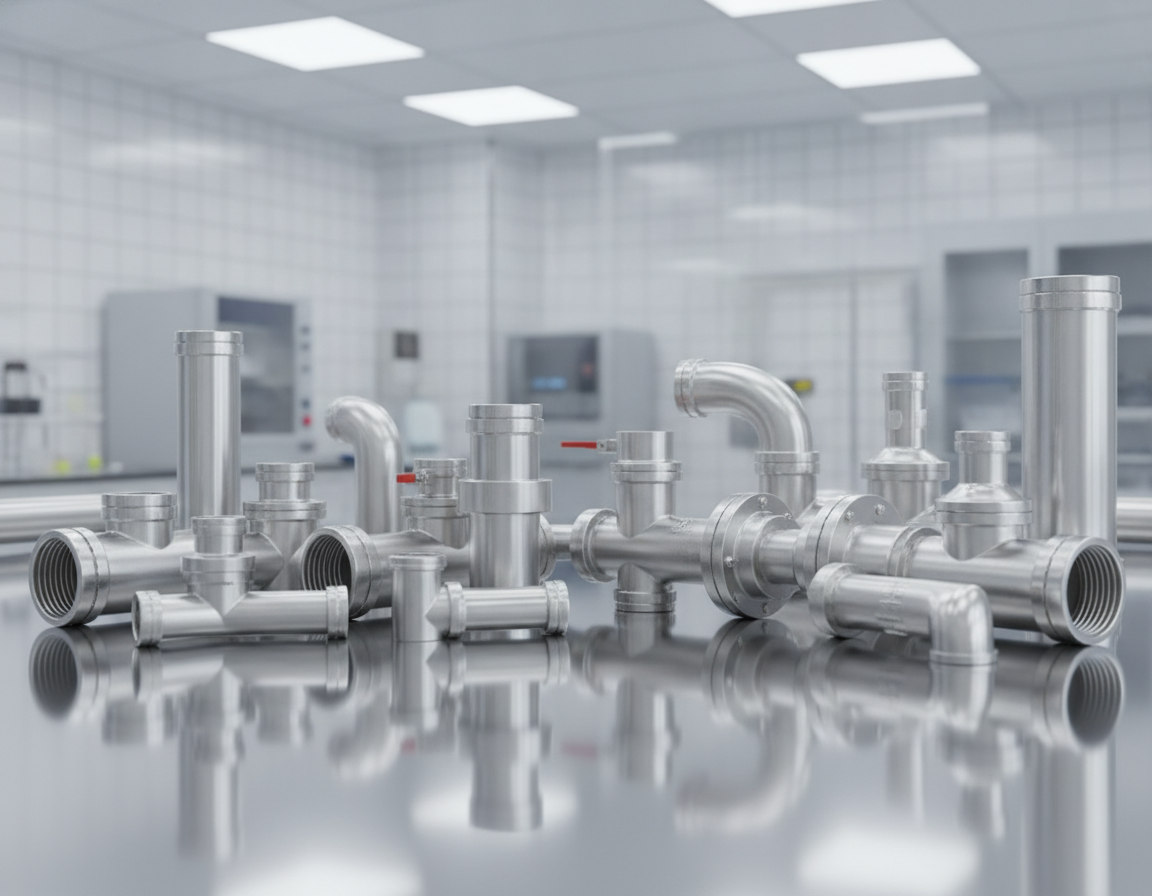

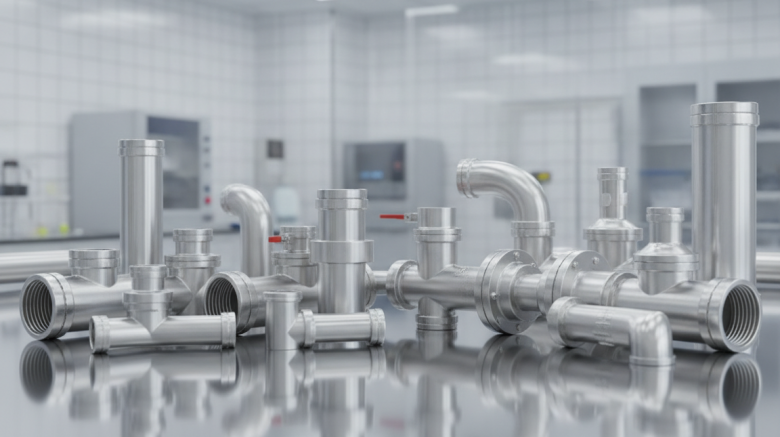

Stainless steel sanitary pipe fittings are critical in maintaining hygienic systems across many industries. These components, including ferrules, clamps, sanitary valves, and fittings, are engineered to keep fluid paths clean. They reduce contamination risk while making cleaning, inspection, and maintenance easier.
Sanitary Weld Fittings
The choice of Hygienic Fittings and Ss Sanitary Fittings directly impacts product safety, system uptime, and adherence to regulations. Material grade, surface finish, and connection compatibility are major selection factors. These details shape how easily the system can be cleaned, validated, and maintained.
Reliable suppliers and detailed catalogs are vital for operations teams to select the right parts. Brands such as CSI and distributors like Installation Parts Supply provide useful purchasing information. They share catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Key Takeaways
- Stainless Steel Sanitary Pipe Fittings enable contamination control in clean process systems.
- Cleanability and corrosion resistance depend on material grade and surface finish.
- Compatible Hygienic Fittings help reduce downtime during upgrades, changeovers, and maintenance.
- Supplier catalogs and reviews from CSI and Installation Parts Supply aid reliable sourcing.
- Proper selection of Sanitary Valves And Fittings supports regulatory compliance and product quality.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems require components designed for safety and efficiency. A sanitary fitting should feature smooth surfaces, tight seals, and accessible cleaning points. These features are essential for preventing contamination and supporting clean-in-place and sterilize-in-place routines.
Sanitary Fittings Definition And Purpose
Sanitary fittings, often called hygienic fittings, are built to create crevice-free connections. That design reduces bacterial growth and helps maintain product purity during transfer and processing. Their design supports quick cleaning and minimizes cross-contamination risks.
Key Industries Using Hygienic Fittings
Food processors depend on hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use them to safeguard flavor and shelf life. Pharmaceutical facilities choose fittings that meet strict regulatory and validation requirements.
Biotech facilities need precise sanitary connections for cell culture and fermentation. These industries prioritize documentation, repeatable cleaning, and compatible materials.
Why Stainless Steel Is Preferred For Sanitary Applications
Stainless steel is widely chosen because it offers corrosion resistance, mechanical strength, and easy cleanability. Grades such as 304 and 316L can withstand cleaning chemicals, process fluids, and elevated temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components help prevent bacterial growth and extend service life under aggressive cleaning. Tri Clover Sanitary Fittings and other standardized interfaces simplify assembly, inspection, and maintenance in hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
Stainless steel sanitary pipe fittings are essential in modern clean systems for food, beverage, and pharmaceutical industries. Choosing the right material, component type, and surface finish limits contamination risk and makes cleaning easier. This section reviews common stainless grades, component families, and surface finish options for hygienic performance.
Materials And Grades Commonly Used
Type 304 stainless steel is known for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L offers superior resistance to chloride pitting and crevice corrosion. Pharmaceutical companies frequently choose 316L for wetted parts due to its low carbon content, which prevents sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L early in design helps control procurement of SS Sanitary Fittings and related parts.
Sanitary Fitting Product Types And Functions
Ferrules are the primary connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings ensure smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings link flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings reduces downtime and leak risks.
Surface Finish And Cleanability Requirements
Surface roughness directly influences how residues cling to metal surfaces. A 32RA internal finish is a common spec that balances cost and cleanability for most food and beverage applications.
Electropolishing further refines the metal and enhances passivity. This treatment helps reduce microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When parts share matching 32RA or electropolished surfaces, cleaning validation is simpler.
| Component | Common Material | Standard Finish | Typical Application |
|---|---|---|---|
| Ferrules for welded assemblies | 304 or 316L | 32RA internal/external finish | Pipe-end transitions and welded joints |
| Two-piece clamps Tri-Clamp | 316L commonly preferred | 32RA or electropolished | Fast sanitary assembly and disassembly |
| Weld fittings and couplings | 304 and 316L stainless options | 32RA with optional electropolish | Permanent connections, elbows, and tees |
| Sanitary flexible-line fittings | 316L commonly used | Electropolished product-contact surfaces | Flexible connections, transfer lines |
| Sanitary valves and process fittings | 316L commonly used for product-contact areas | Smooth polished flow paths | Cleanable flow control in process lines |
Triclover Fitting Options And Tri-Clamp Catalog Guidance
Tri Clover Pipe Fittings follow strict dimensional standards, ensuring compatibility across manufacturers. DIN 32676 and DIN 11864-3A set ferrule face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, focus on size ranges, material specifications, and surface finishes. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Key items in catalogs feature clamps, ferrules, and gasket sets, sized in inches or DN. Prices for small two-piece clamps start under ten dollars, while larger clamps are in the low double digits. Each Triclover Fitting entry should show OAL, ID/OD finish, and compatible gasket material. This helps ensure the correct part is selected when ordering.
High-pressure applications may require double-bolt or heavy-duty two-piece clamps. These clamps may use a 304 stainless body with brass nuts to balance strength, corrosion resistance, and tightening performance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material impacts both longevity and cleaning performance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog makes Triclover Fittings replacement faster and helps minimize downtime. Seek suppliers that provide detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
CSI Sanitary Fittings Compatibility And Sanitary Connections
Sanitary connections are essential for joining pipes, valves, pumps, and equipment in clean systems. The correct joint type is important for maintaining cleanability, efficiency, and reliability. This section explains common connection styles, brand interchangeability, and supplier reliability feedback.
There are multiple connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each style has different advantages for assembly speed, cleanability, and leak risk.
Clamp connections are popular because they assemble quickly and can be disassembled easily for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are suitable for low-risk applications where product contact is not a concern. Sanitary hose fittings require matched ferrules and a secure Sanitary Coupling to prevent leaks.
Brand compatibility is essential when mixing components. CSI Sanitary Fittings and Csi Fittings follow common standards such as Tri-Clamp and DIN, which generally supports interchangeability with other manufacturers. Steel & O’Brien publishes spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Verify standards such as DIN 32676 and DIN 11864 on datasheets. Mismatched finishes or grades can cause corrosion, leakage, or product-residue traps.
Customer feedback offers practical insights into supplier reliability. Reviews for CSI highlight consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Others praise the responsive communication after order inquiries.
When evaluating suppliers, review lead times, documented quality, and after-sale support. Reliable shipping and clear spec sheets reduce downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Sanitary Connection | Best Use | Hygienic Cleanability | Cross-Brand Notes |
|---|---|---|---|
| Tri-Clamp clamp connection | Product-contact lines needing frequent disassembly | High; gasketed seal easy to clean | Strong interchangeability when standards, faces, and sizes align |
| Butt-weld and socket-weld fittings | Permanent runs needing smooth bore | Excellent after correct weld finishing and polishing | Standardized dimensions ensure cross-brand fit for ferrules and couplings |
| Threaded fitting connection | Low-risk applications away from product contact | Moderate because threads may trap residue | Less common in product-contact lines; verify material and surface finish |
| Sanitary hose and ferrule connection | Flexible runs and transfer lines | Strong if fitted with matching ferrules and couplings | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
Selection Guide For Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Choosing the right sanitary components requires a few focused steps. This guide helps match size, material, finish, and gasket type to process requirements. Use the metrics and checks below to minimize downtime and ensure hygienic performance.
Begin with size and designation. Confirm DN and TC markings, then verify DN-to-TC inch equivalents before ordering. Common catalog mappings include DN20, DN25, DN32, DN40, DN50, DN65, and DN100 matched to 0.25″–4″ Tri-Clamp sizes. Check mating faces, gasket grooves, and flange profiles to confirm compatibility.
Material selection is critical. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Many suppliers list 316L ferrules and fittings as standard choices for harsh service environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Assess pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure applications require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Copper Tri Clamp Fittings may be considered for specialized or niche applications. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final checks save costs. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Keeping sanitary connections clean and reliable is important in hygienic systems. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Keeping detailed records of materials, finishes, and maintenance is essential for traceability and audits.
Best-practice assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, fit the clamp and tighten by hand, then apply the specified torque with a calibrated wrench. For high-pressure applications, use double-bolt clamps with brass nuts and adhere to the recommended torque to prevent over-compression.
Sanitary Weld Fittings guidance
For weld joints, prepare tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect weld contour, internal profile, and surface smoothness. If needed, rework rough spots through controlled grinding and electropolishing to restore low roughness and maintain hygiene.
Routine Sanitary Maintenance
Run CIP and SIP cycles according to process requirements. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. After each maintenance activity, verify clamp torque, gasket seating, and alignment.
Troubleshooting common issues
When leaks appear, first check clamp seating, gasket condition, and ferrule alignment. Misaligned clamps can cause uneven compression and leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Surface damage repair considerations
Surface damage such as scratches, pitting, or crevice corrosion can harbor microorganisms. Minor scratches can be polished out and then electropolished to restore the Ra levels. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Documentation and records
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records help with regulatory compliance and expedite troubleshooting efforts.
| Maintenance Task | Frequency | Primary Action | Important Notes |
|---|---|---|---|
| Sanitary clamp torque verification | After assembly and monthly | Check with calibrated torque wrench | Reference the correct torque table for each coupling size |
| Gasket condition check | Every 3 to 12 months or when failure occurs | Look for damage, compression set, or extrusion | Replace only with compatible gasket material |
| Ra and surface condition check | After weld work and during quarterly checks | Check Ra values and look for surface defects | Electropolish or refinish if Ra exceeds hygienic specification |
| Sanitary weld inspection | After installation, then yearly | Inspect for undercut, porosity, profile | Rework and polish fittings when defects appear |
| CIP and SIP validation | According to each cleaning or sterilization cycle | Track time, temperature, chemistry, and concentration | Document results for regulatory traceability |
Where To Buy: Sanitary Fittings Catalogs, CSI Fittings, And Installation Parts Supply
Starting with a detailed catalogue review is essential. Look for a Sanitary Fittings Catalog that lists material grade, surface finish, dimensions, and pressure rating. It should also reference standards such as DIN 32676 or DIN 11864-3A. Before ordering, confirm item codes, stock status, lead times, and compatibility to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, focus on clamp type, gasket compatibility, and dimensional specs. Check if ferrules and fittings have surface finishes like 32RA or electropolished. A detailed catalog makes gasket and clamp matching easier during assembly and maintenance.
Evaluate Csi Fittings by reading independent reviews, checking supplier lead times, and comparing published specifications. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Catalog Item | Nominal Size | Material Grade | Surface Finish | Typical Catalog Price |
|---|---|---|---|---|
| Two-piece single-pin clamp | 0.25″–0.75″ | Type 304 stainless steel | Standard finish | 3.91 USD |
| Single-pin two-piece clamp | 1 inch | Type 304 stainless steel | Standard finish | Approx. $4.91 |
| Two-piece single-pin clamp | 2 inch | 304 | Standard catalog finish | $5.99 |
| Single-pin two-piece clamp | 2.5″ | 304 | Standard catalog finish | 6.93 USD |
| Two-piece single-pin sanitary clamp | 3 inch | Type 304 stainless steel | Standard finish | $7.54 |
| Two-piece single-pin sanitary clamp | 4″ | 304 stainless | Standard finish | Approx. $9.16 |
| TC sanitary ferrule | 2″ size, 1.125″ overall length | 316L | 32RA ID and OD | Approx. $4.24 |
| TC sanitary ferrule | 2″ — 1.125″ OAL | 304 | 32RA ID and OD | Approx. $4.06 |
| Ferrule TC | 3″ | 316L stainless | 32RA ID and OD | Approx. $6.15 |
| High-pressure double-bolt clamp | 1.5 inch | Type 316 stainless steel | Polished finish | 12.93 USD |
| High-pressure double-bolt clamp | 2 inch | 316 | Polished sanitary finish | $14.62 |
| Double-bolt high-pressure clamp | 3″ | 316 stainless | Polished sanitary finish | 20.26 USD |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to confirm availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Before purchasing, review product pages to cross-check pressure ratings, gasket materials, and fitting compatibility.
When sourcing parts, prioritize catalogs that show clear specs for 304 versus 316L, specify surface finish, and cite conforming standards. A targeted search through a Sanitary Fittings Catalog will speed up procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in food, beverage, pharmaceutical, biotech, and other hygienic industries. Choosing between 304 and 316L, along with finishes such as 32RA or electropolishing, directly supports cleanability. These choices can significantly reduce contamination risk. Ensuring that Tri Clover Fittings and other components meet standards like DIN 32676 is critical for tight Sanitary Connections and easy interchangeability.
When choosing fittings, evaluate material grade, surface finish, connection type, and pressure needs. Connection choices may include Tri-Clamp, weld, hose, or threaded fittings depending on pressure, product contact, cleaning requirements, and regulations. High-pressure clamps should be used where necessary. Keeping gaskets, clamps, and ferrules consistent helps prevent leaks and simplifies maintenance. Proper installation and regular cleaning support the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This helps with balanced cost and reliability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. They should list product specifications, finishes, and standards to ensure compatibility with CSI and other branded fittings.
Following these guidelines streamlines system design and upkeep. Clear specifications, consistent materials, and trusted sources reduce downtime. This protects product quality in hygienic processing environments.
